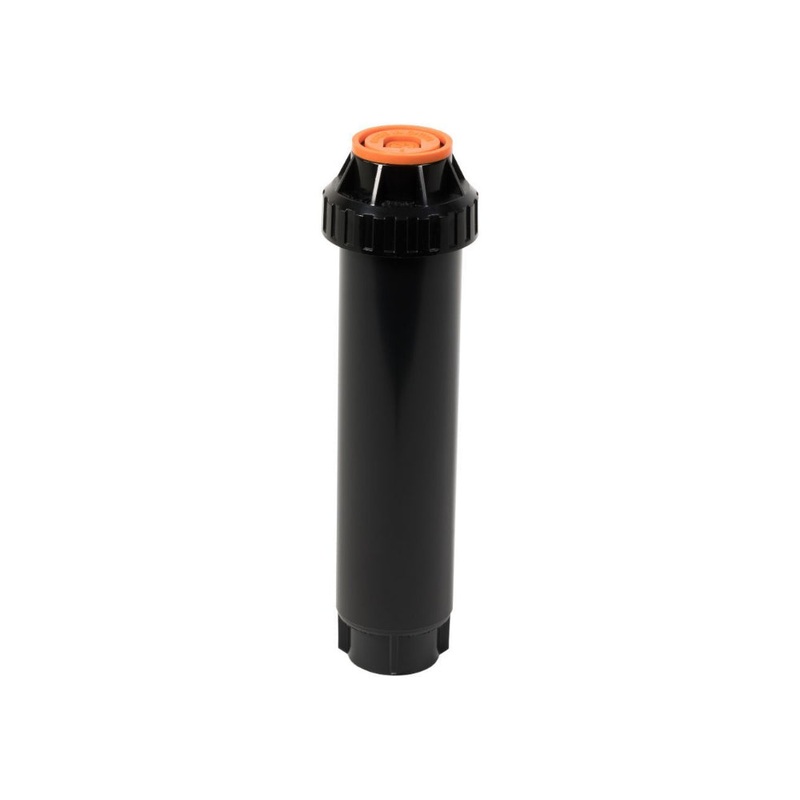

• NOZZLESOLD SEPARATELY
• Height: 4 Pop-Up
• Body Height:6 1/4 (21.6 cm)
• 15 70 PSI (1.0 4.8 BAR)

FEATURES

MAX SEAL

• Industry-first dual pressure-activated seal with 720 degrees sealing surface around flow tube stem, cap, and the body eliminates stick-ups and cap to body leaks
• Industry-standard white Santoprene seal for ultimate performance

MAX SPRING

• Industrys strongest spring for positive retraction
• Corrosion-resistant stainless steel material for long life
• Unique reversible spring design can be installed in either direction for simple, fast field assembly

MAX SELF-CLEANING CHECK VALVE

• Enhanced debris resistance through the expanded surface area
• Tapered design for self-cleaning operation
• Positive seal even in dirty water environment

MAX LEVEL CAP

• Flat cap and easy pull up, low profile flush plug for sprinkler leveling
• Superior labeling process allows better identification and customization

MAX NOZZLE OPTIONS

• Compatible with all industry-standard female thread nozzles
