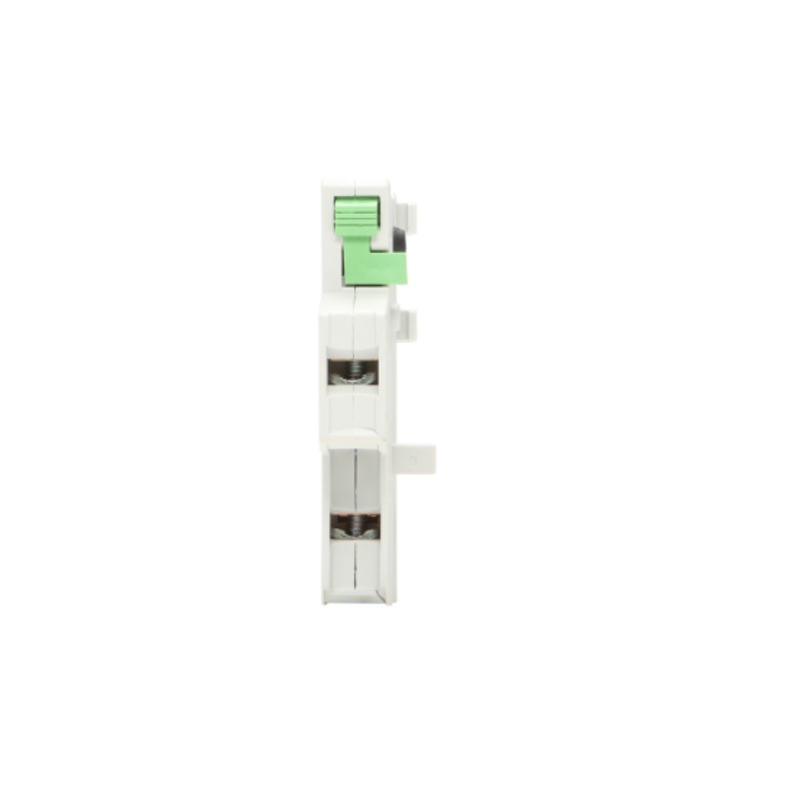

Quick Connect Auxiliary Contactor
AXF Series, 1 Normally Open (NO) + 1 Normally Closed (NO)
Mounting Style – Side Mount
Coil – Auxiliary Contact
Part Number- 1314051
Matched Contactor – Ex9CK20~90 3P, Ex9CKT20~40 3P & 4P

Features:
Coil voltages from 24~600 Vac, 50/60 Hz
Coil is Class B 266 F (130 C)
Available with enclosed coils for protection against particle contamination
Industry standard mounting plate provides easily accessible mounting holes
More connection terminal options, including screw or lug connections each with quick connect spades
Double E magnet assembly provides optimal performance with reduced power consumption
1NO+1NC auxiliary contact block with 600 Vac available as an option Base assembly is made from high arc-resistant polyester

Certifications: UL Recognized Component, File Number E353866
Certified for Canada According to CSA Standards
IEC/EN 60947-4-1
Complies with VDE Standards
