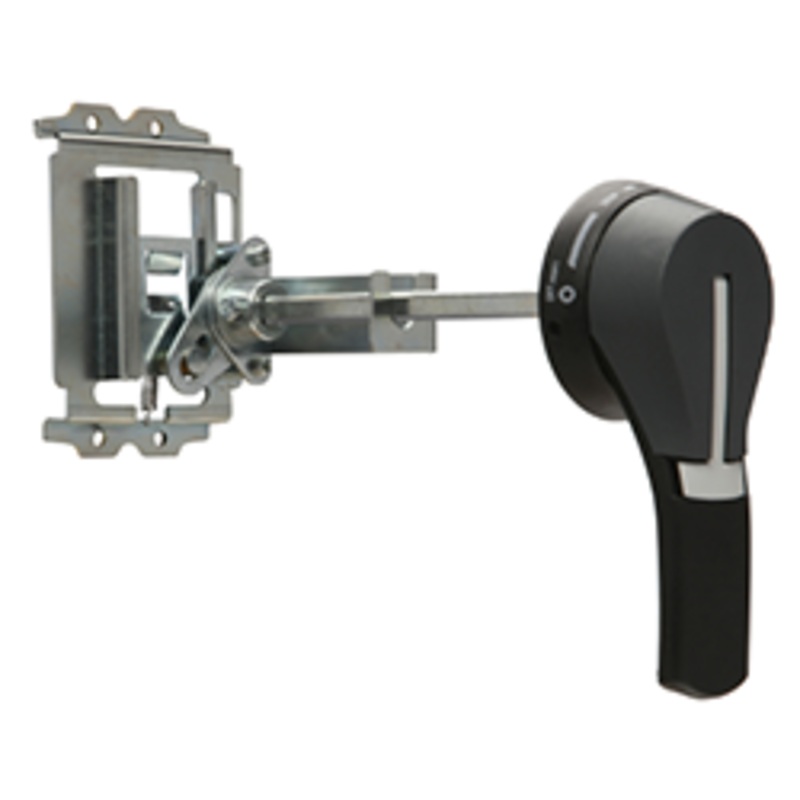

Extended Rotary Handle
Yellow/Red
Shaft Diameter with Bracket 9in, 230mm
Rating Ingress Protection (IP 65)
NEMA 4X/4
Part Number- 1600087

The extended rotary handle makes it possible for a door-mounted rotary handle to operate starter installed on the inside back panel of an enclosure. The extended rotary handle consists of the following:
A set of screws onto the handle of the starter
An assembly (handle and front plate) that fits on the enclosure door
An extension shaft which must be adjusted according to the distance between the mounting surface and the door: 9 inch (230 mm)
A bracket that install with starter and the shaft through

Certifications:
UL 60947-1/60947-4-1 listed file No.
E467185
UL 508 Listed, file No. E476273
IEC/EN 60947-2/-4-1
CCC Certified
