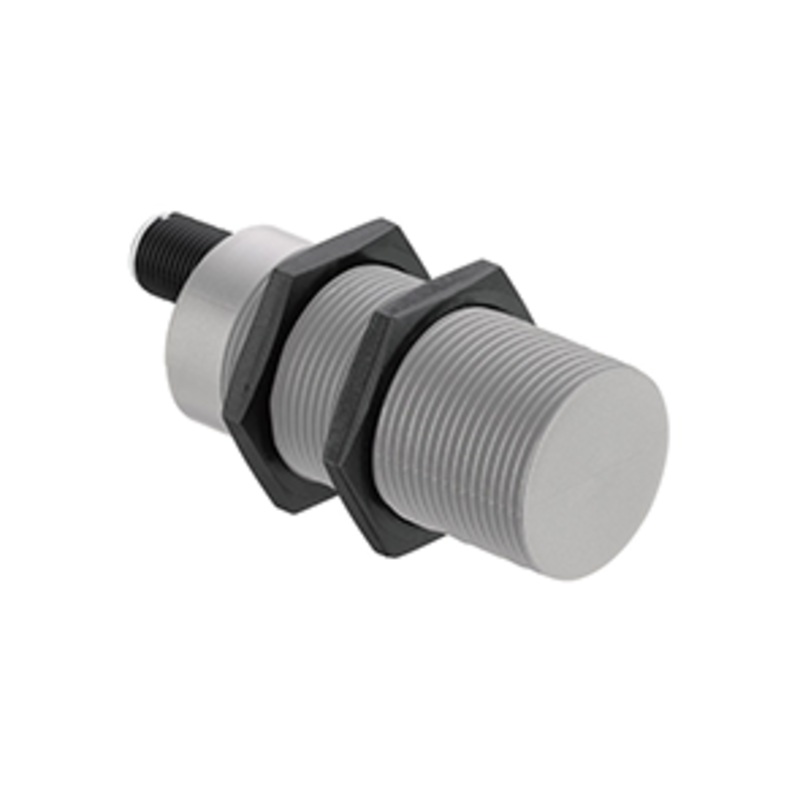

LCS-1 Series, Capacitive Sensor
Switching distance Sn-1-25mm, Assured Switching Distance 25mm
Polarity reversal protection, Short Circuit Protected

Supply voltage UB – 10-30V, DC
Open-circuit current – 15mA
Rated operating current – 100mA
1 digital switching output, DC Voltage
Switching element-Transistor, NPN, Normally Closed (NC), 100 Hz Switching Frequency
Function – Signal OUT Voltage Supply
Connection – Cable, 2000mm, Sheathing Material- PUR, 3-wire

Mechanical Data: Cylindrical, M30 x 1.5 mm Thread, 30mm x 66.5mm, Non-Embedded
Plastic Housing Material, Sensing Face Material- Plastic, Polybutylene (PBT), Cover material- Plastic, Polybutylene (PBT)
LED Display, Multiturn potentiometer (20 turns)
Adjustable Switching Distance
Ambient temperature, operation: -25-85C
