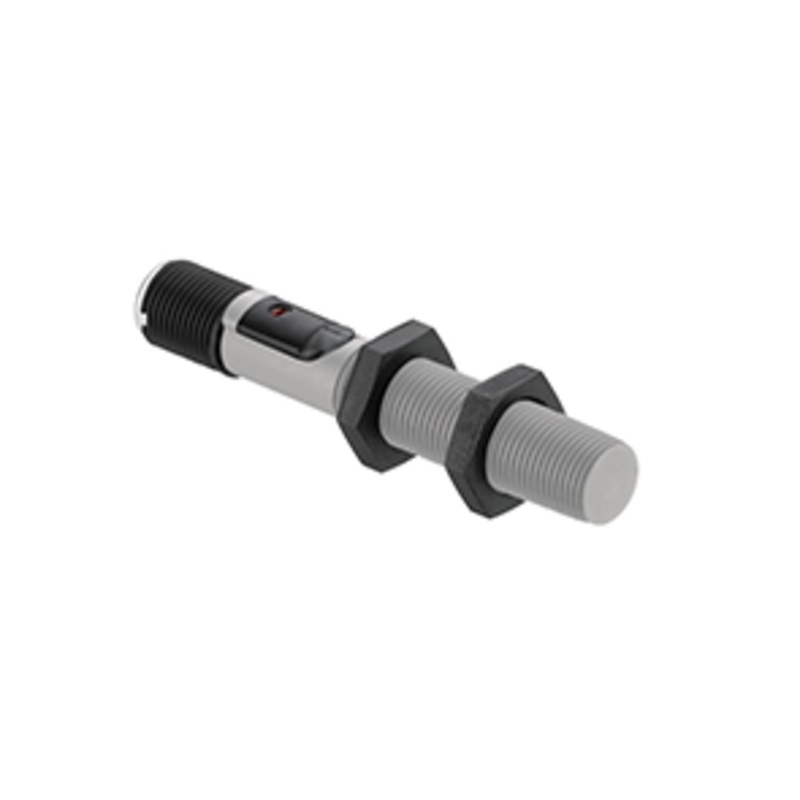

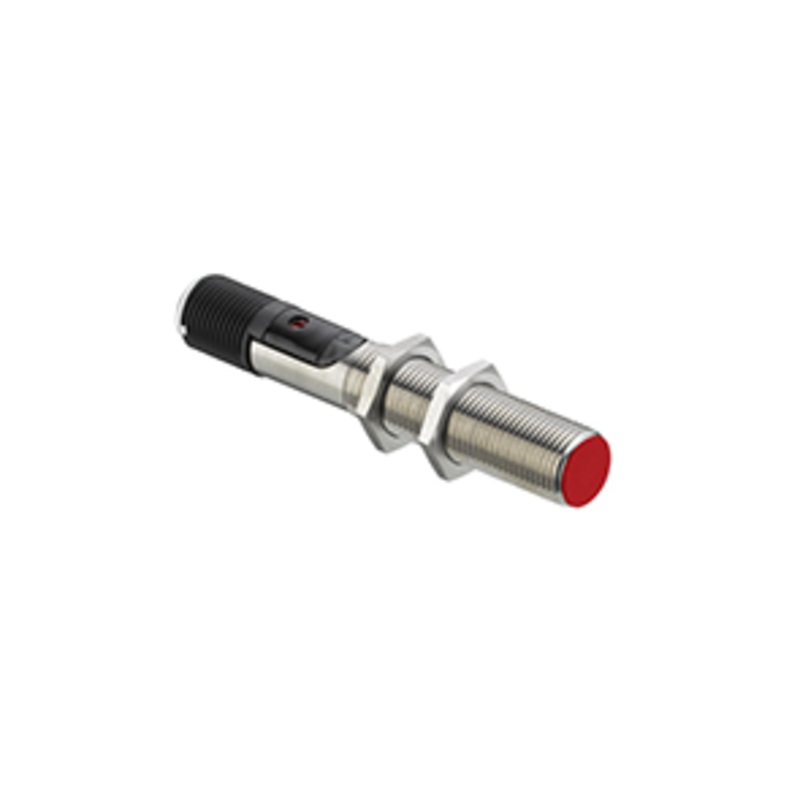

LCS-1 Series, Capacitive Sensor
Assured Switching distance 8mm
Polarity reversal protection, Short Circuit Protected

Supply voltage UB – 10-30V, DC
Open-circuit current – 15mA
Rated operating current – 100mA
1 digital switching output, DC Voltage
Switching element-Transistor, PNP, Normally Closed (NC)
100 Hz Switching Frequency
Function – Signal OUT Voltage Supply
Connection – Cable, Length 2000mm
Sheathing Material – PUR
Number of conductors – 3-wire

Mechanical Data: Cylindrical, M12 x 1 mm Thread, 12mm x 61mm, Non-Embedded, Stainless Steel Housing V2A
LED Display, Multiturn potentiometer (20 turns), Adjustable Switching Distance
Ambient temperature, operation: -25 to 85C
