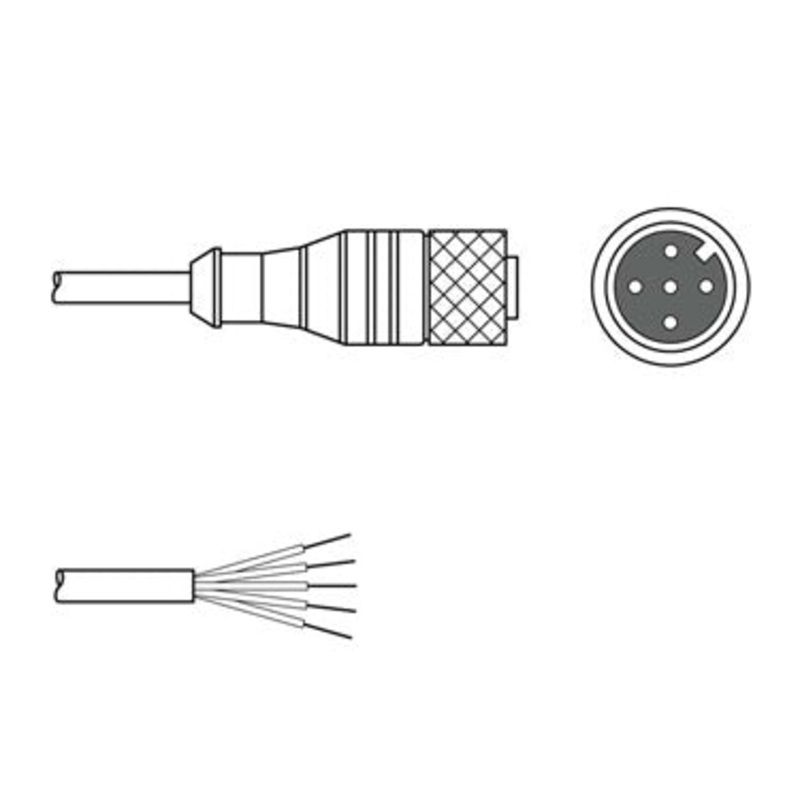

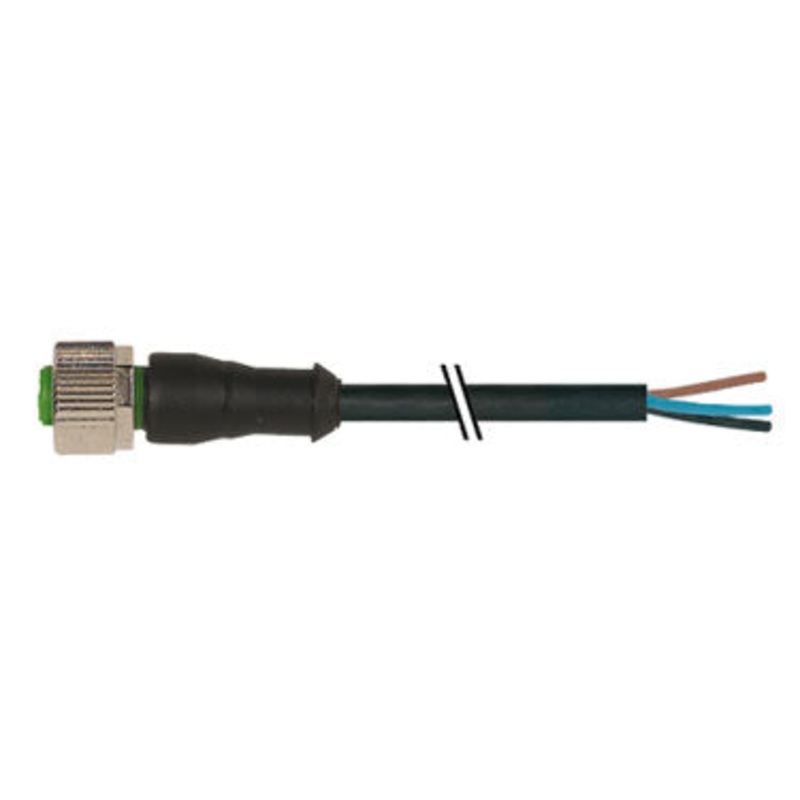

KD U-M12-5A-V1-100 Connection Cable

Chemical Resistant
Operating Voltage – Max. 125V AC/DC

Connection 1 – Thread Size M12, Type – Female, No. of pins – 5-pin, Encoding – A-Coded, Version- Axial, NO Connector LED, Lock – Screw fitting, nickel-plated diecast zinc, recommended torque 0.6 Nm, self-locking.
Connection 2 – Open End

Cable Properties:
Number of conductors – 5 Piece(s)
Sheathing Color- Black
Shielded- No
Silicone-Free
Cable length – 10,000 mm
Sheathing material – PVC
Wire insulation – PVC
Suitablility for drag chains – No
Properties of the outer sheathing – Free of CFC, cadmium, silicone and lead, easily machine-processable
Resistance of the outer sheathing – Good oil, gasoline and chemical resistance, flame retardant in accordance with UL 1581 VW1 / CSA FT1
