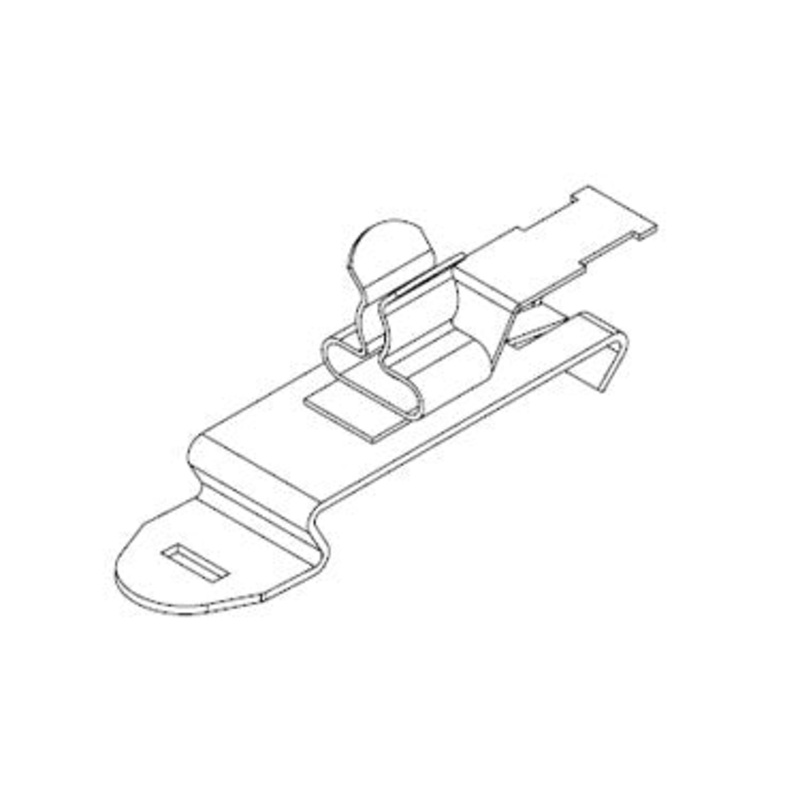

EMC shield clamp, shield diameter 3-6 mm Shield diameter: 3 – 6 mm
Length: 56 mm
Width: 14 mm
Height: 21 mm

The shield clamps SFZ|SKL are used for shielding single cables in combination with strain relief. Easy to use and effective in shielding of cables. For assembly on 35 mm DIN rails.

Advantages:
Simple and tool-free assembly
Vibration proof, maintenance free
Strain relief of the cable and shielding in single device
Optimal contact of the cable shield
Permanent and continuous spring pressure on the cable shield, no adjustment of the spring load required

Shield clamp type: Single clamp No. of shield clamps: Material shield clamp: Spring steel, zinc plated Material mounting foot: Spring steel
Mounting type: Plug-in Mounting location: 35 mm DIN rail shape With strain relief
