EMC-KTG 15 EMC cable grommet, clamping range 15-16mm
5 Pack

For wire type: Round cable
Length: 41.5 mm
Width: 42 mm
Height: 19 mm

The cable grommets type EMC-KT are made of a very conductive elastomer. Thus,
disturbances are dissipated from the cable shield directly via the grommet, the
frame and the flat gasket. This ensures full-area protection against field-bound
interference!

Suitable for:
EMC-KEL-U cable entry frames
EMC-KEL-DS cable entry frames
EMC-KVT-DS cable glands

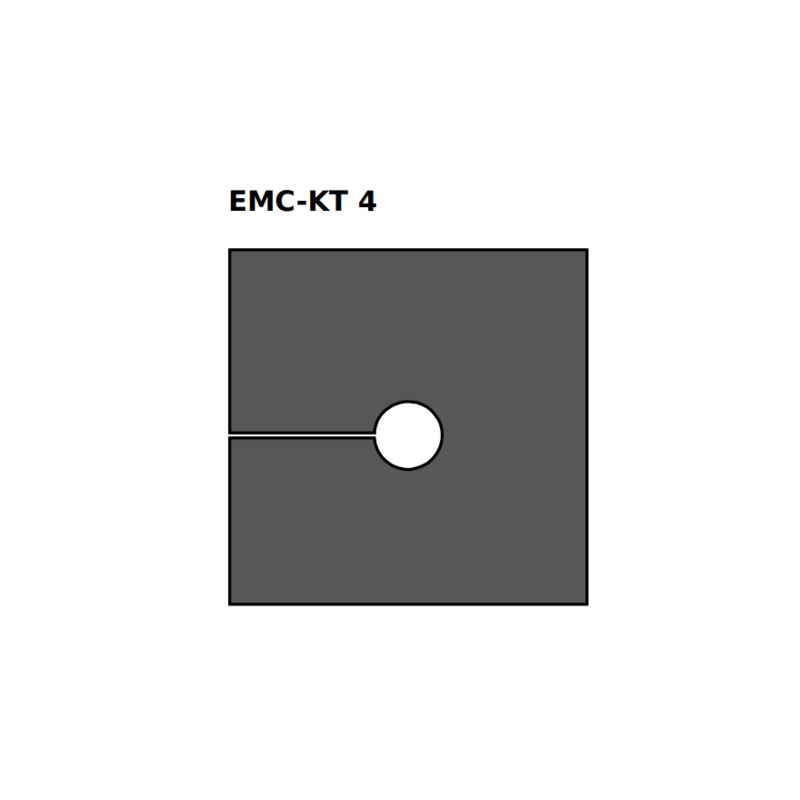

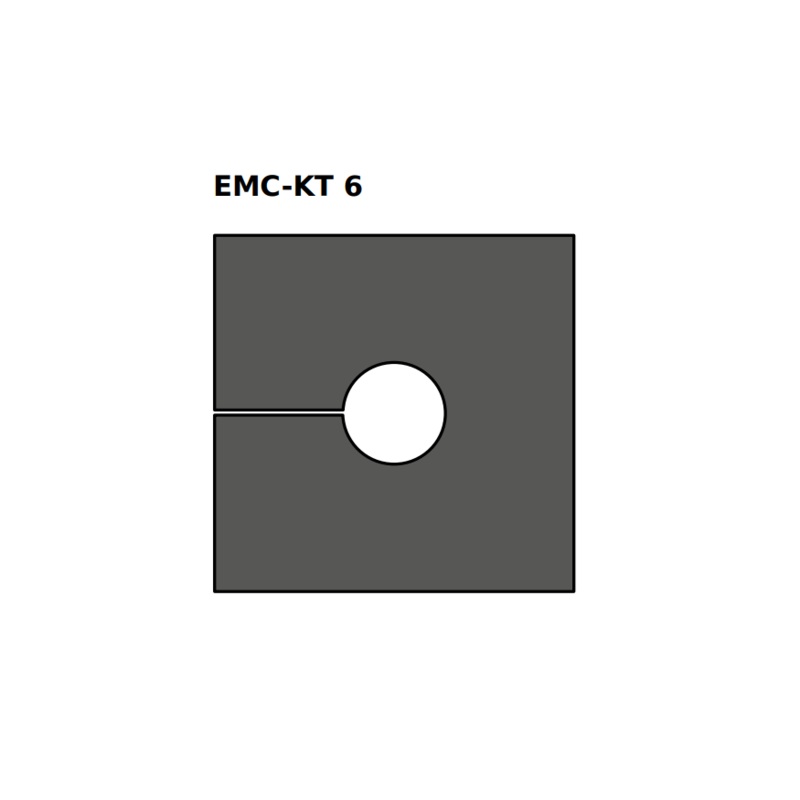

The model range EMC-KT small is designed for cable diameters from 2 to 16 mm.
Cable grommets EMC-KT large accept a wide range of cable diameters from 13 to
33 mm.
When using double or quadruple grommets the cable density of EMC cable entry
frames and cable glands can be greatly increased.
When installing the small grommets in multiple rows, the flat sides should be
facing each other.
