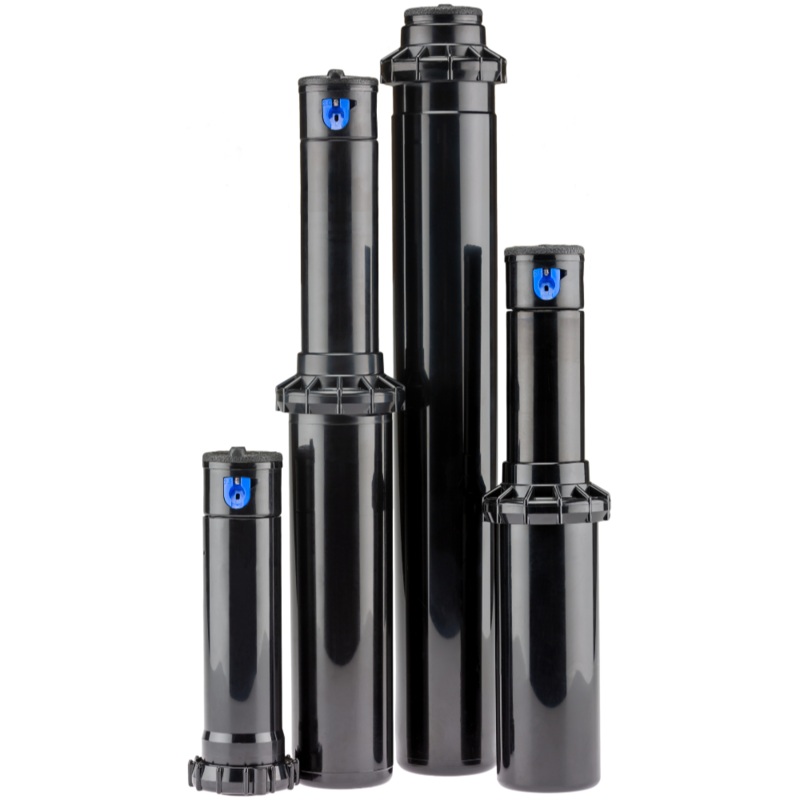

The PGP Ultra raises the bar for rotor technology with powerful features developed over three decades of research, customer feedback, and lab testing.

Replaces Hunter *G-Type* Sprinklers

Technical Specs:

• Nozzle choices: 34
• Radius: 17′ to 46′
• Flow: 0.36 to 14.8 GPM
• Recommended pressure range: 25 to 70 PSI
• Operating pressure range: 20 to 100 PSI
• Precipitation rate: 0.4 in/hr approximately
• Nozzle trajectory: standard = 25, low-angle = 13
• Nozzle racks: 1.5 to 8.0 blue, 2.0 to 4.5 low-angle gray, 0.50 to 3.0 black, 6.0 to 13.0 green, MPR-25, MPR-30, MPR-35
• Warranty period: 5 years

Factory-Installed Options:

• Drain check valve (up to 10′ of elevation)
• Reclaimed water ID
• Blue #1.54.0 nozzles

User-Installed Options:

• Drain check valve (up to 3′ of elevation) PGP-04 only (P/N 142300SP)
• HSJ-0 prefabricated ” PVC swing joint

Documents:

• Installing PGP Riser Seal
• PGP Instruction Guide
• PGP Ultra Installation Card
• PGP Ultra Installation Card
• Brochure
• Product Cutsheet
• Reclaimed Water Solutions
